Frozen Beverage Replacing Motor

FB: Replacing Motor


How-To Guide :: Frozen Beverage :: Replacing Motor

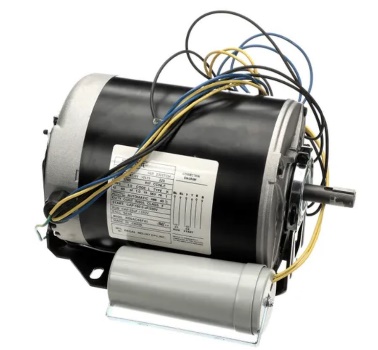

Spaceman Frozen Beverage machines utilize a single-phase motor with start and run capacitors to drive the main auger to agitate the product.  These motors drive a pulley which turns a belt attached to a gearbox.  Motors range in size from ¼ Horsepower to 1 ¾ Horsepower, however all motors utilize similar wiring and mounting.  This article will go over the steps to replace your Spaceman Frozen Beverage motor.

Parts Ordering: Replacement Motors can be purchased via PartsTown.  Please refer to the parts list for your machine to determine the correct motor for your model.  Replacing motors on all machines is very similar, however there are slight differences in the sets of instructions below for certain smaller 110V motors.
Warning: While replacing the motor, you will be working with high-voltage capacitors.  It is VERY important to be careful when working with these capacitors.  Failure to do so could cause severe injury or death due to electrical shock


Required Tools

  1. Metric Hex Driver or Allen key set
  2. Flathead Screwdriver
  3. Philips-head Screwdriver
  4. Metric or Adjustable Wrench set
  5. 14mm Socket, Wrench, or second Adjustable Wrench
  6. Clamp-style Amp Meter
  7. Insulated Needle Nose pliers
  8. Insulated Wire Cutters and Stripper

How to Replace a Motor

  1. Turn Power Switch to Off and unplug the machine from the wall.
  2. Follow the instructions in the Operator Manual to properly drain, disassemble, and clean the machine.
Warning: The machine must be unplugged as power may be available to certain components even with the machine power switch in the off position.
  1. Using a flathead screwdriver, unlock all panel locks remove the rear and side panels from the machine.  All panel locks are quarter-turn and should turn inward to unlock, they do NOT require significant force to unlock. For floor-standing machines, generally only the top panels need to be removed.
Note: For smaller countertop machines, panels may be installed using an 8mm Hex-head bolt rather than quarter-turn panel locks.
  1. Locate the electrical box and remove the panel cover using the appropriate Philips-head screwdriver or wrench, depending on model.
  2. Manually press in the contactor for the motor(s) (Please refer to the wiring diagram to identify the proper contactor for your machine).  This will, generally, de-energize the start and run capacitors.
Warning:  Ensure your hands and tools are clear of the inside of the machine when performing this step.  Serious injury can occur.  While this step is designed to properly de-energize the start and run capacitors for the motor(s), there is still possibility that the capacitors will retain some charge.  Always treat capacitors as if they are holding charge and use an appropriate discharging tool to discharge the capacitors once removed.
  1. The motor will be below the freezing cylinder.  Each motor will have several wires coming out of a terminal on the rear of the motor.  Trace these wires to the start and run capacitors.
  2. Use a 7mm wrench to disconnect the capacitor housings and lift capacitor housings from the mounting brackets.  There is no need to open the housing to expose the capacitor as the replacement motor will ship with new capacitor housings.   The run capacitor will have blue wires, and the start capacitor will have yellow wires.
Note:  On certain 110V machines, only one capacitor may be present as an additional Start Capacitor is not required for these models.
  1. Remove the sheathing and zip ties protecting the capacitor and power wires coming from the motor until the capacitor wires are free.  Note how these wires are routed and secured in place.  Set the capacitors off to the side.  Do not cut the wires, as this opens the potential risk for shock.
  2. Isolate the two black power wires away from blue and yellow capacitor wires and cut, one at a time, to disconnect the motor power.   Cut as close to the motor as possible for ease of installing new motor.
  3. If the motor has a ground wire screwed to the motor housing, unscrew this terminal from the motor, otherwise, cut the green ground wire in similar fashion to the power wires.
  4. Using needle nose pliers to pinch the tensioning post on the motor bracket, and an adjustable wrench or socket, loosen the tension on both motor mount springs to loosen the belt tension.
  5. Remove the belt from the pulleys and set aside.
  6. Using a 13mm wrench, loosen and remove the four gold nuts that secure the motor mount bracket to the pivot plate.  A 14mm socket can be used to secure the bolt from bottom.
  7. Remove the old motor, bracket, and capacitors from machine.
  8. Locate the two setscrews on the front of the motor pulley attached to the driveshaft.  Use an appropriate Allen wrench to remove the two setscrews (3mm or 5mm depending on model).
  9. Install one of the setscrews you just removed into the center setscrew hole on the pulley bushing.  Tighten until the pulley and bushing separate.
  1. Tightening down this set screw can sometimes seem difficult.  Apply additional pressure until you feel set screw loosen the pulley assembly come free of the motor driveshaft.
  1. Remove the pulley and bushing from the old motor and set the setscrews aside.
  2. Place the new motor and mounting bracket inside machine.
  3. Place the replacement capacitors into the capacitor mounting brackets.  Use a 7mm wrench to secure the capacitor housings in place.
  4. Route the capacitor wires along the frame as before and protect with sheathing / secure in place with zip ties as required.
  5. Align the motor mount bracket with the bolt holes on the pivot plate and install bolts loosely.
  6. Install the pulley onto the motor driveshaft, and place bushing inside center of the pulley and align.  The gear box pulley should be directly in-line with motor pulley below.
Warning:  Ensure Pulley and Bushing are fully installed on the driveshaft.  The shaft should slightly protrude through the rear of the bushing.
  1. Install set screws into the two side holes on the bushing, attaching the pulley to the bushing.  Prior to tightening, check again to ensure gearbox pulley is in line with the motor pulley below and adjust, as necessary.
  2. From the rear of the machine, ensure the gearbox pulley is inline with the motor pulley, and then tighten the motor mounting brackets using a 13mm wrench on top, and a 14mm socket or wrench on the bottom.
  3. Using appropriate wire nuts or wire crimps, cut and splice the black power wires on the motor to the power wires that were cut in step 9.
  4. If the motor utilizes a screw-on grounding terminal, re-attach to the new motor, otherwise, cut and splice the green ground wire on the motor to the ground wire that was cut in step 10.
  5. To test the motor functionality, plug the machine back into power.  Place a clamp meter around one of the black power wires, and press in the contactor that drives the motor.  The motor should turn on and read approximately 1.0 Amps or less for 220V machines, and approximately 4.0 Amps for 110V machines.  Unplug machine from the wall before continuing.
Warning:  Always make sure inside of machine is free of tools and hands when power is provided.  Serious injury can occur.
  1. Reinstall the belt on the pulleys.  If the belt is too tight, loosen the spring tensioning bolts further until the belt easily installs on the pulley.  Ensure the belt is vertically aligned and make pulley adjustments, as necessary.
  2. Check belt tension.  There should be approximately +/- 0.5 inches of play in the belt.
  3. Using needle nose pliers to hold the motor tensioning shaft and an appropriate wrench or socket, tighten the motor mounting springs until the belt tension is set correctly.
Warning:  Do NOT over-tighten belts.  This may cause overheating and damage to the motor or gearbox.
  1. The motor is now installed, and you should be able to turn the belts by hand freely without binding or noise.  To test the motor functionality, plug the machine back into power.  Place a clamp meter around one of the black power wires, and press in the contactor that drives the motor.  The motor should turn on and read approximately 1.0 Amps or less for 220V machines, and approximately 4.0 Amps for 110V machines with no load.  Unplug machine from the wall before continuing.
  2. Reinstall electrical box covers, and side panels.
  3. Follow Operator Manual to Lubricate, Assemble, Sanitize, and add product to the machine.
