Tune Up Kit – Soft Serve – 2 Flavor - Small
Overview
Part Number: SM-KIT-SS-2F-S
Description: Tune Up Kit – Soft Serve – 2 Flavor – Small (1.8 qt Cylinders)
Note: For more information on tune up kits, models they fit, replacement timeline, and other wearable parts, please see the SS: Tune Up Kits article.

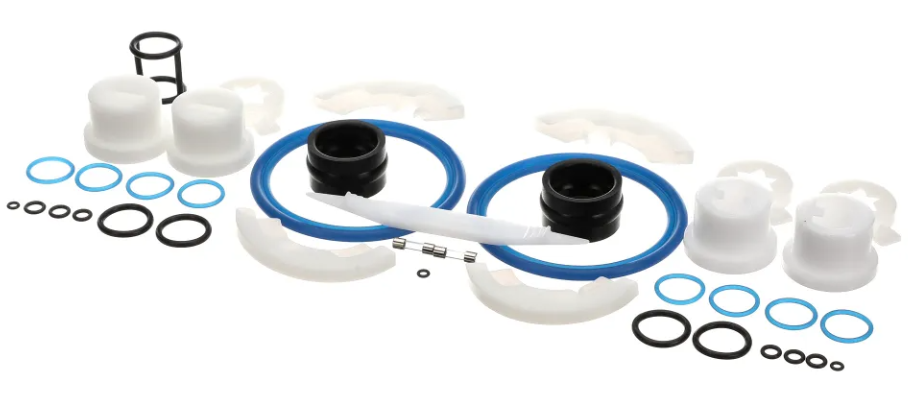

Parts Included
Part Number |
Description |
Quantity |
3.4.08.02.007 |
Dispensing - SS - Door Gasket 100mm (Blue) - 1.3-1.8qt |
2 |
3.4.08.01.011 |
Dispensing - SS - Draw Valve - O-Ring - 2F/ 3F - 1.8qt |
4 |
3.4.08.01.019 |
Dispensing - SS - Draw Valve - H-Ring - Twist/ Middle - 1.8qt |
1 |
3.4.08.01.012 |
O-Ring – 3.0x1.5 |
3 |
3.4.08.01.013 |
Dispensing - SS - O-Ring - SS - Prime Plug/ Retention Pin (1F model) -9x2/5.2x1.9 |
4 |
3.4.08.01.034 |
O Ring – Hopper Agitator - 31x2 |
4 |
3.4.08.01.002 |
Dispensing - SS - O Ring - Gravity - Air Tube - 18x2.2 |
8 |
3.4.05.03.005 |
Dispensing - SS - Design Cap - Double Triangle (original 6 point) - 37mm OD (large) |
3 |
3.4.07.05.002 |
Beater - FB/SS - Drive Shaft – Gasket |
2 |
3.4.01.03.007 |
Beater - SS - Guide - Small - 1.3-1.8qt - v2 |
2 |
3.4.07.01.002 |
Accessories - Spaceman O-Ring Removal Tool |
1 |
3.4.01.03.001 |
Beater - SS - Guide - Small - 1.3-1.8qt – v1 |
2 |
3.4.01.02.002 |
Beater - SS - Shoe - Right Small 1.3-1.8qt |
2 |
3.4.01.01.002 |
Beater - SS - Shoe - Left Small 1.3-1.8qt |
2 |
3.4.08.01.028 |
Dispensing - SS - O Ring - Gravity - Air Tube - Breather Cap Seal - 6.2x1.9 |
2 |
