Tune Up Kit – Soft Serve – 1 Flavor - Small

Tune Up Kit – Soft Serve – 1 Flavor - Small


Parts and Accessories :: Tune Up Kit – SS – 1 Flavor – Small

Overview

Part Number: SM-KIT-SS-1F-S

Description: Tune Up Kit – Soft Serve – 1 Flavor – Small (1.3 – 1.8 qt Cylinders)


Note: For more information on tune up kits, replacement timeline, and other wearable parts, please see the SS: Tune Up Kits article.

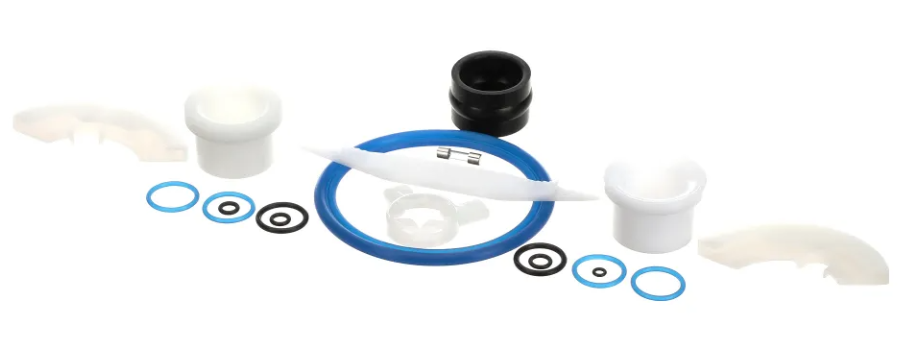

Parts Included

Part Number

Description

Quantity

3.4.08.02.007

Dispensing - SS - Door Gasket 100mm (Blue) - 1.3-1.8qt

1

3.4.08.01.006

Dispensing - SS - Draw Valve - O-Ring - 1F - Side/ Standard - 3.4qt - 16.8x2.4

2

3.4.08.01.012

O Ring - 3.0x1.5

1

3.4.08.01.013

Dispensing - SS - O-Ring - SS - Prime Plug/ Retention Pin (1F model) -9x2/5.2x1.9

3

3.4.08.01.034

O Ring – Hopper Agitator - 31x2

2

3.4.08.01.002

Dispensing - SS - O Ring - Gravity - Air Tube - 18x2.2

4

3.4.05.03.004

Dispensing - SS - Design Cap - Double Triangle (original 6 point) - 31mm OD (small)

1

3.4.07.05.002

Beater - FB/SS - Drive Shaft – Gasket

1

3.4.01.03.007

Beater - SS - Guide - Small - 1.3-1.8qt - v2

1

3.4.07.01.002

Accessories - Spaceman O-Ring Removal Tool

1

3.4.01.03.001

Beater - SS - Guide - Small - 1.3-1.8qt – v1

1

3.4.01.02.002

Beater - SS - Shoe - Right Small 1.3-1.8qt

1

3.4.01.01.002

Beater - SS - Shoe - Left Small 1.3-1.8qt

1

3.4.08.01.028

Dispensing - SS - O Ring - Gravity - Air Tube - Breather Cap Seal - 6.2x1.9

1
